Performance Advantages
● Large pore binder grinding is sharp, no risk of burns
● Good self-sharpening performance, low frequency of trimming
● Good abrasive consistency, good surface quality of grinding workpiece
Application Scenario

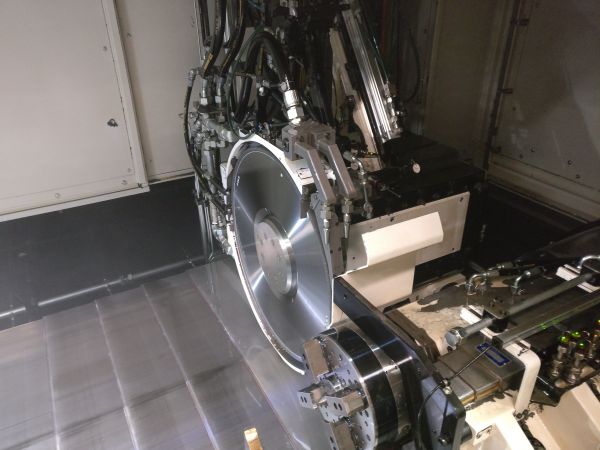

● Grinding of the center and outer circle of automobile camshaft
● Grinding of the main journal, connecting rod journal and thrust surface of automobile crankshafts External cylindrical grinding of motor shafts

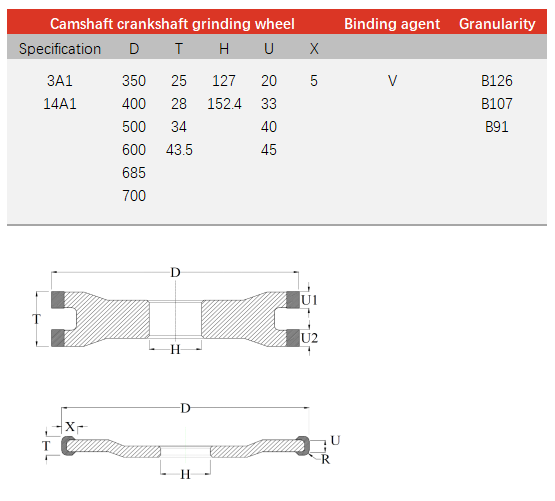

Product Parameters
| Grinding workpiece | Automobile crankshaft |

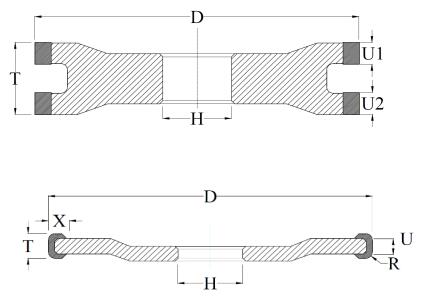

| Grinding wheel specifications | 700-56-159.94-43.5/13.5-9-R3.5 |
| Grinding allowance | 0.3-0.5 |
| Line speed | 85m/s |
| Trimming amount | 0.004*4 |
| Trimming frequency | 50 items |
| Processing cycle | 31min20s |
| Life span | 7520 Pieces |
