Performance Advantages
● Good retention and low trimming rhythm
● Multiple binder options to support different grinding conditions
● Sharp grinding, no burns
Application Scenario
● Internal grinding of compressor pistons, bearings and cylinders
● Double-end grinding of compressor cylinders, pistons, partitions and blades
● Grinding of compressor crankshafts and eccentric shafts

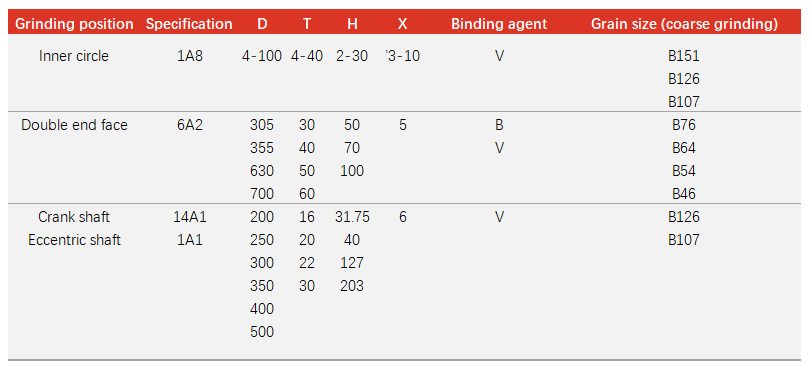

Product Parameters
| Grinding workpiece | Compressor piston |
| Workpiece size | ф34 |
| Workpiece material hardness | HT250 HRC50±3 |
| Grinding wheel specifications | D355T50H80W50X5 B B64 |
| Grinding allowance | 0.1mm |
| Line speed | 28m/s |
| Processing time | 11.4s |
| Trimming frequency | 2000 items |
